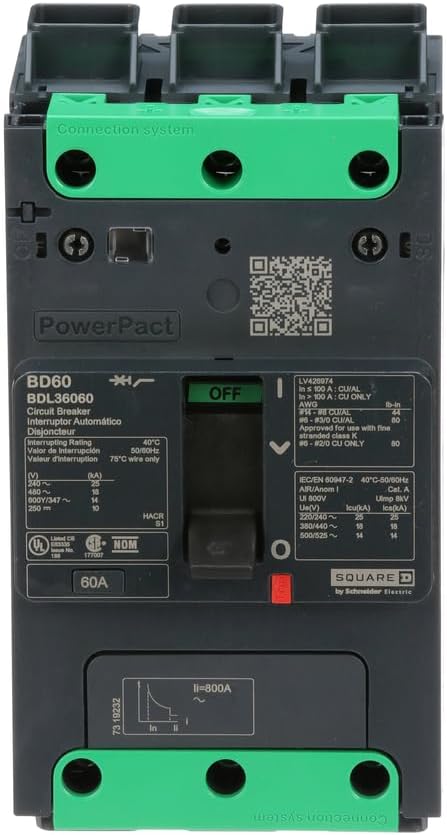

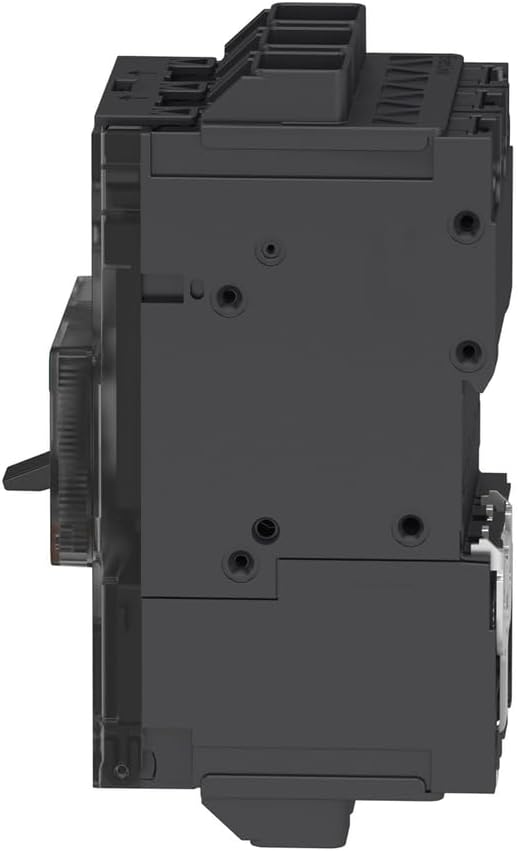

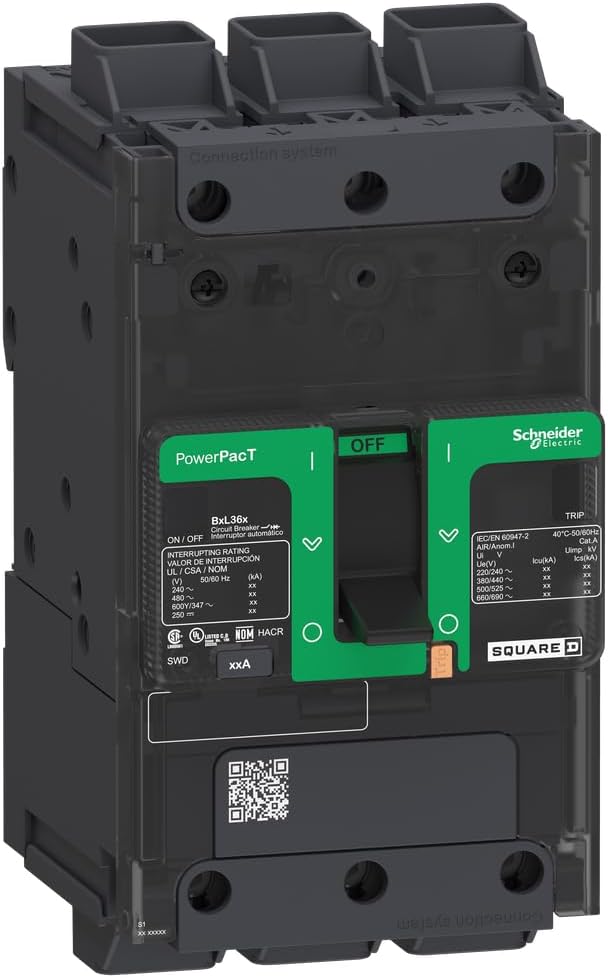

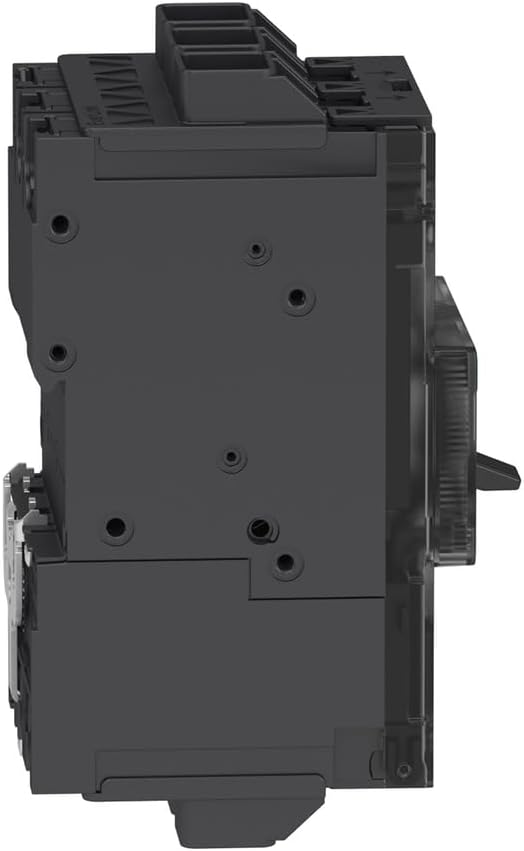

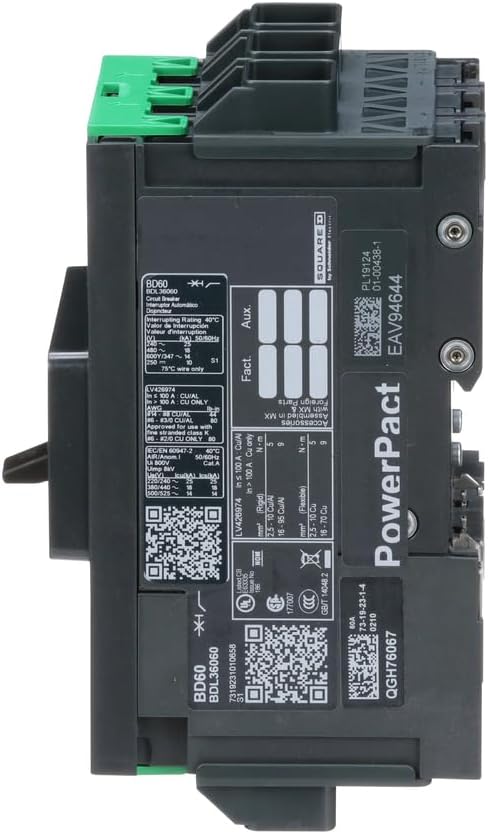

Square D by Schneider Electric BDL36060 PowerPacT B Circuit Breaker with Thermal-Magnetic Trip Unit Technology and Back Pan or DIN Rail Mounting, 60 Amp, 3 Pole

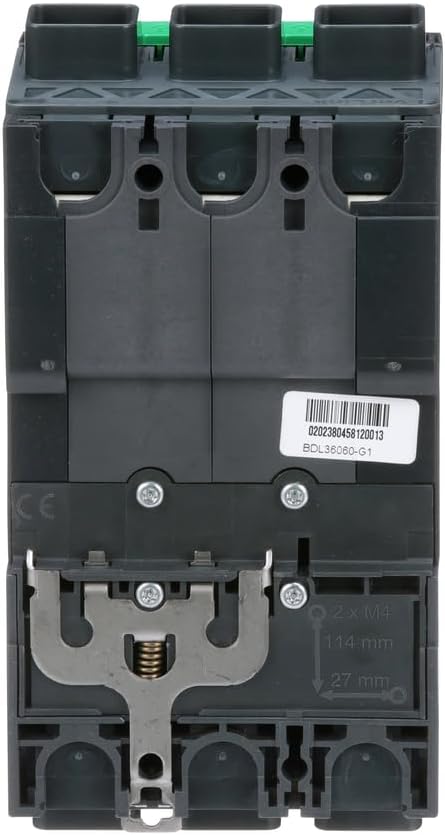

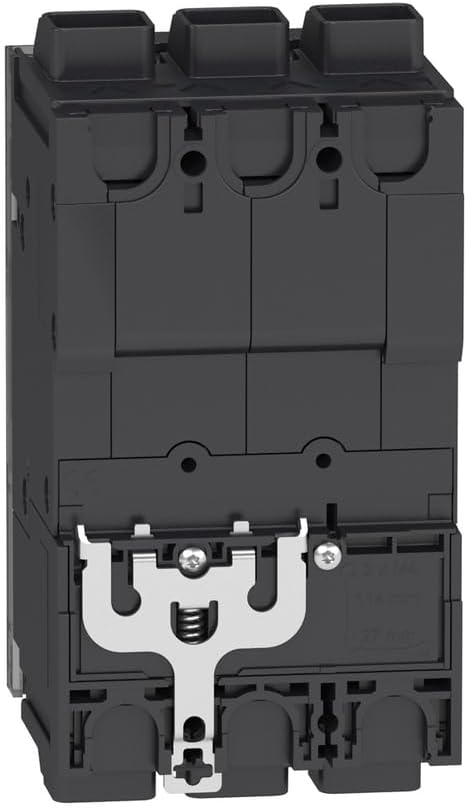

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 60A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Additional details

• Item Dimensions D x W x H : 3.15'D x 3.15'W x 5.39'H

Features & Specs

• Circuit Breaker Type : Standard
• Current Rating : 60 Amps
• Mounting Type : lugs
• Number of Poles : 3
• Voltage : 600 Volts

Item details

• ASIN : B0CX6X6RWV
• Brand Name : Schneider Electric
• Included Components : Case
• Manufacturer : Schneider Electric
• Model : BDL36060
• Part Number : BDL36060
• Unit Count : 1.0 Count
• Warranty Description : No Warranty
