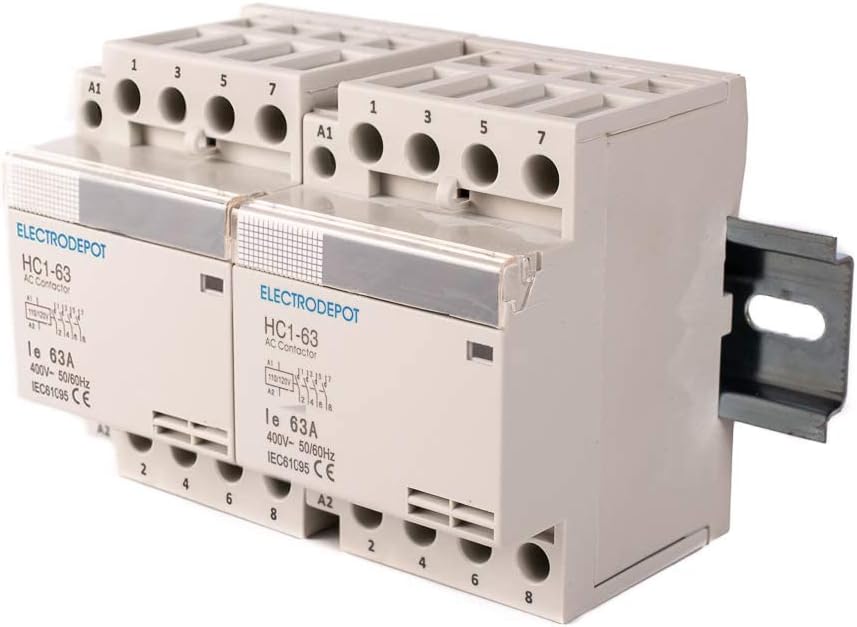

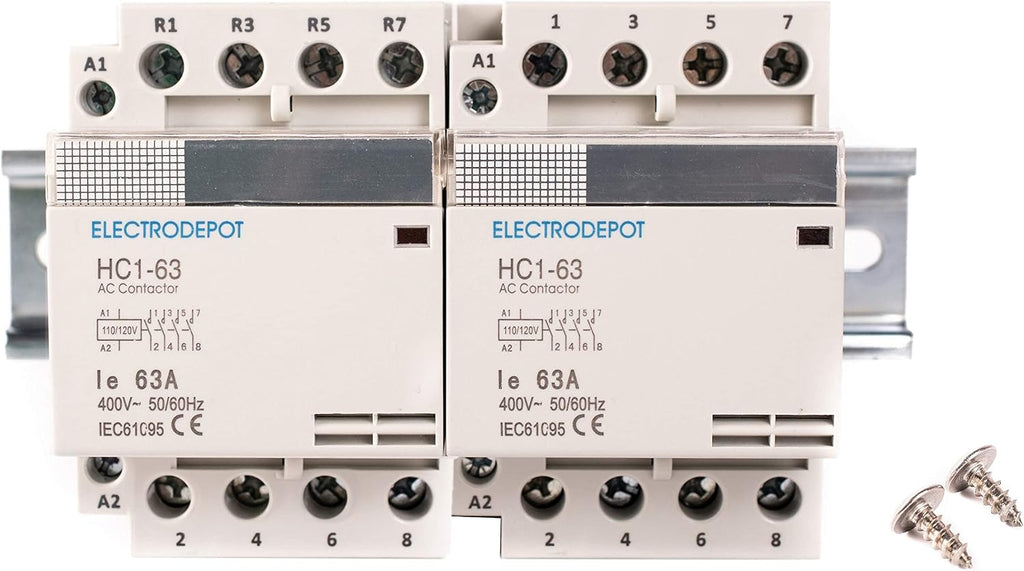

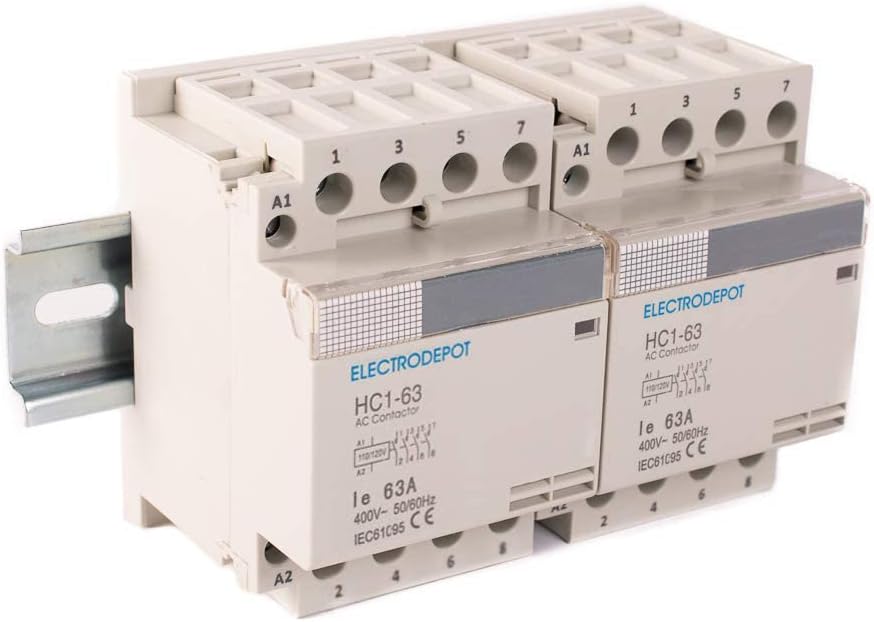

Electrodepot 40 Amp 8 Pole (4 Pole x 2) Normally Open, 110/120VAC Coil (Silent Operation), Motor Load 40A and Lighting Load 63A Contactor Bundle with DIN Rail, 35 x 150 mm and 2#10 Screws

Electrodepot 40 Amp 8 Pole (4 Pole x 2) Normally Open, 110/120VAC Coil (Silent Operation), Motor Load 40A and Lighting Load 63A Contactor Bundle with DIN Rail, 35 x 150 mm and 2#10 Screws

8 Poles
$48.00 $134.95
Skip to product information
Electrodepot 40 Amp 8 Pole (4 Pole x 2) Normally Open, 110/120VAC Coil (Silent Operation), Motor Load 40A and Lighting Load 63A Contactor Bundle with DIN Rail, 35 x 150 mm and 2#10 Screws
  • Electrodepot 40 Amp 8 Pole (4 Pole x 2) Normally Open, 110/120VAC Coil (Silent Operation), Motor Load 40A and Lighting Load 63A Contactor Bundle with DIN Rail, 35 x 150 mm and 2#10 Screws
  • Electrodepot 40 Amp 8 Pole (4 Pole x 2) Normally Open, 110/120VAC Coil (Silent Operation), Motor Load 40A and Lighting Load 63A Contactor Bundle with DIN Rail, 35 x 150 mm and 2#10 Screws
  • Electrodepot 40 Amp 8 Pole (4 Pole x 2) Normally Open, 110/120VAC Coil (Silent Operation), Motor Load 40A and Lighting Load 63A Contactor Bundle with DIN Rail, 35 x 150 mm and 2#10 Screws
  • Electrodepot 40 Amp 8 Pole (4 Pole x 2) Normally Open, 110/120VAC Coil (Silent Operation), Motor Load 40A and Lighting Load 63A Contactor Bundle with DIN Rail, 35 x 150 mm and 2#10 Screws
  • Electrodepot 40 Amp 8 Pole (4 Pole x 2) Normally Open, 110/120VAC Coil (Silent Operation), Motor Load 40A and Lighting Load 63A Contactor Bundle with DIN Rail, 35 x 150 mm and 2#10 Screws
  • Electrodepot 40 Amp 8 Pole (4 Pole x 2) Normally Open, 110/120VAC Coil (Silent Operation), Motor Load 40A and Lighting Load 63A Contactor Bundle with DIN Rail, 35 x 150 mm and 2#10 Screws
  • Electrodepot 40 Amp 8 Pole (4 Pole x 2) Normally Open, 110/120VAC Coil (Silent Operation), Motor Load 40A and Lighting Load 63A Contactor Bundle with DIN Rail, 35 x 150 mm and 2#10 Screws
  • Electrodepot 40 Amp 8 Pole (4 Pole x 2) Normally Open, 110/120VAC Coil (Silent Operation), Motor Load 40A and Lighting Load 63A Contactor Bundle with DIN Rail, 35 x 150 mm and 2#10 Screws
Electrodepot 40 Amp 8 Pole (4 Pole x 2) Normally Open, 110/120VAC Coil (Silent Operation), Motor Load 40A and Lighting Load 63A Contactor Bundle with DIN Rail, 35 x 150 mm and 2#10 Screws

Electrodepot 40 Amp 8 Pole (4 Pole x 2) Normally Open, 110/120VAC Coil (Silent Operation), Motor Load 40A and Lighting Load 63A Contactor Bundle with DIN Rail, 35 x 150 mm and 2#10 Screws

$48.00 $134.95
Size8 Poles

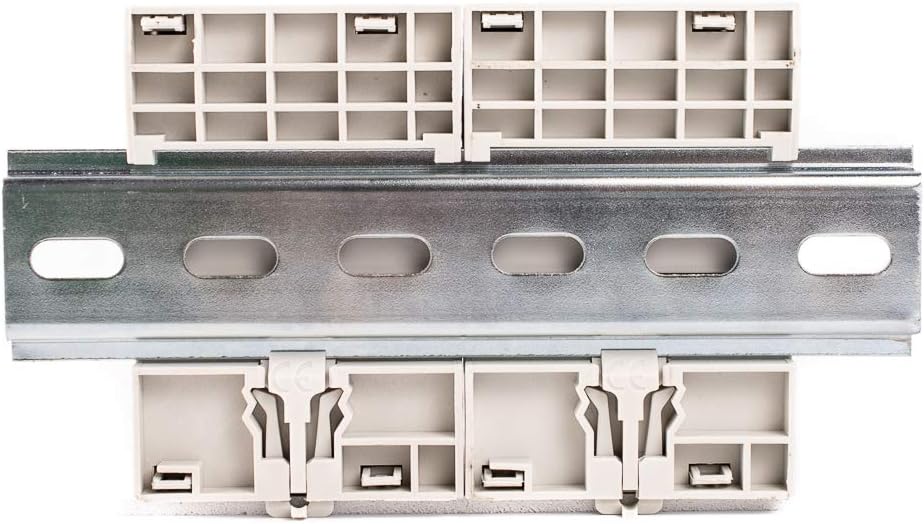

ABOUT CONTACTOR40 Amp 8 Pole Normally Open Contactors (4 Pole x 2) for home or industrial uses.With applications in lighting, motor and switching.Technical Specifications:– Contactor IEC 400V– Contactor Type NO– Inductive Load: 40A– Resistive Load: 63A– DC Load: 30A, @ 24VDC– Power status indicator– Number of Poles 4 x 2– Coil Volts: 110/120VAC, 50/60 Hz– Coil Load: Inrush 52VA, Sealed 10VA– IEC AC Rate: AC-1, 10 kW. AC-3, 8 kW– Electric e strength: 4 kV– Operating Temperature: -30…+70 °C (-22…+158 °F)– 1 HP @ 1 Phase - 120V– 2 HP @ 1 Phase - 230V– 5 HP @ 3 Phase - 208V– 5 HP @ 3 Phase - 230V– 10HP @ 3 Phase - 480V– Weight: 0.88 lb (0.42 kg)– Width: 2.1' (54 mm)– Height: 3.3' (84 mm)– Depth: 2.5' (64 mm)– CE approved 61095, UL pending– Base or DIN 35mm mountWiring:Solid Conductor: 25 mm2 Max torque 0.6 NmStranding Conductor: 16 mm2, Max torque 0.6 NmCompliance:CSA C22.2 No. 14, EN 60947-4-1, EN 60947-5-1, IEC 947-2, IEC 60947-4-1, IEC 60947-5-1, UL 508ABOUT DIN RAILDIN Rails are the standard mounting support for any electromechanical component, device or equipmentdesigned using the DIN specifications adopted by European (EN) and international (IEC) standards.The rail features slots throughout its length making it easy to attach to a panel, wall or equipment.For support of mini circuit breakers, contactors, auxiliary relays, terminal blocks, low voltage apparatuses, etc.– Width: 35mm (1.375')– Length 150mm (6')– Thickness 5mm (0.2')ABOUT SCREWSDrive stainless steel truss head screws (#10, 1/2'') for immediate installation.

Additional Information

  • ASIN : B07PQNSZPX
  • Date First Available : March 13, 2019

Technical Details

  • Batteries Included? : ‎No
  • Batteries Required? : ‎No
  • Certification : ‎CE, CSA, IEC, UL
  • Item Weight : ‎1.83 pounds
  • Manufacturer : ‎Electrodepot
  • Package Dimensions : ‎7.56 x 4.41 x 3.31 inches
  • Size : ‎8 Poles
  • Style : ‎8 Poles
